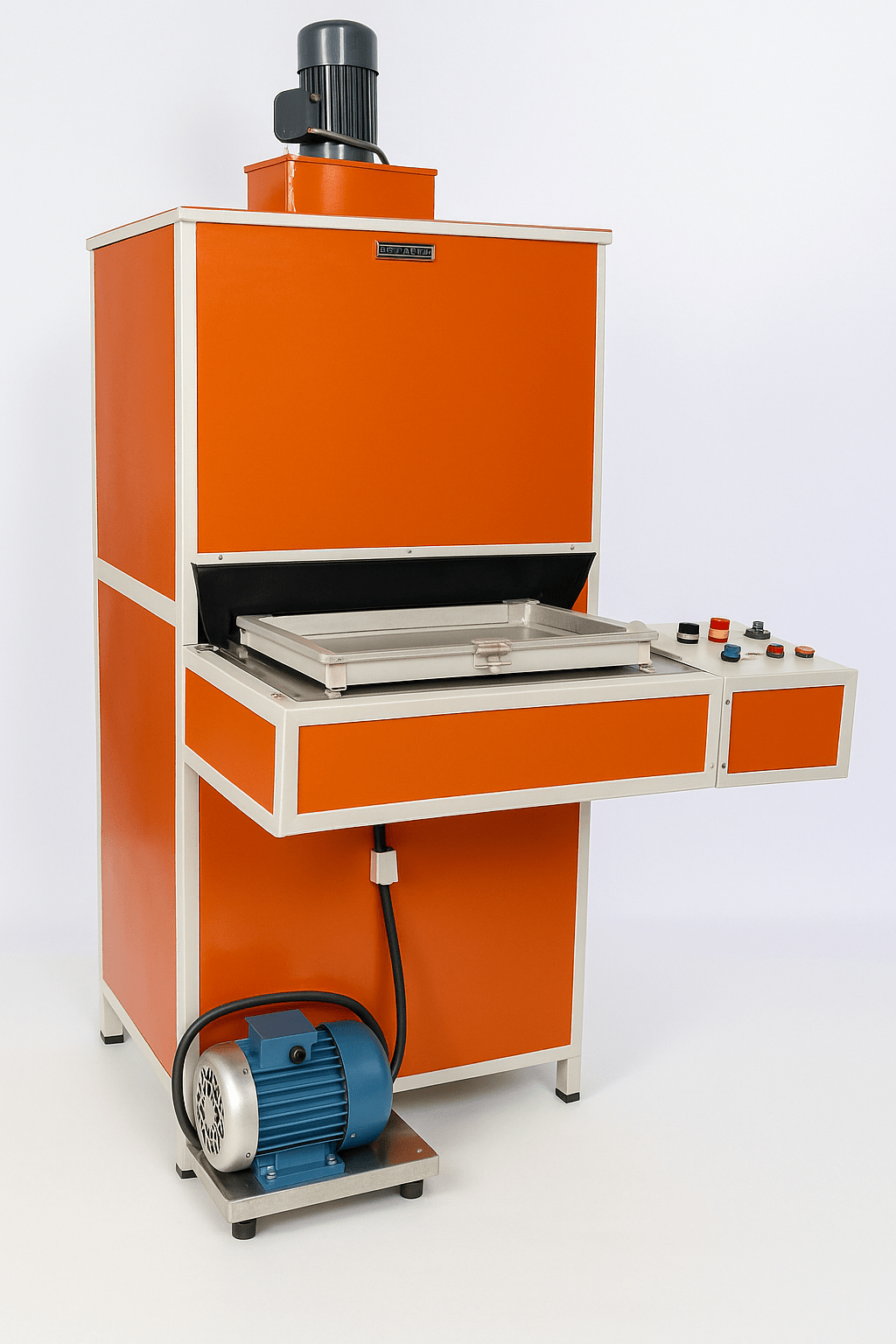

Photo Exposure Machine

Acid Etching Machine

Product Description

This Machine  is used as an exposing  machine for printing on printed circuit boards. This machine can be used for both dry film and PISM exposure. It also has a timer & vacuum meter.

Design Highlights

Dual Lamp System: Upper & lower UV tubes for uniform exposure.
Flexible Use: Supports both dry film & PISM exposure.
Independent Lamp Control: Separate switches for each lamp.
Integrated Timer & Vacuum Meter: Ensures process accuracy.
Efficient Cooling: Air exhaust system for optimal temperature control.
All Electrical & Electronics Material used, CECT Approved.

Explore More About The Product

Technical Specifications

Model
Maximum Exposing Area
Over all Dimensions
U.V. Lamp (Led)
Cooling
Vacuum Pump
Timer
Drawer
Indication
Exposure Type
Heat Sink
ME -450
400mm x 610mm
6’ (H) x 5.5’ (L) x 3.5’ (W)
5 kw.
Air Exahust
¼ HP 2 Nos.
0 to 999 Second
Double drawer
Digital Indication with 4 Setting Storage
PISM & Dry Film Exposure
Aluminum Heat Sink for led
