Product Description

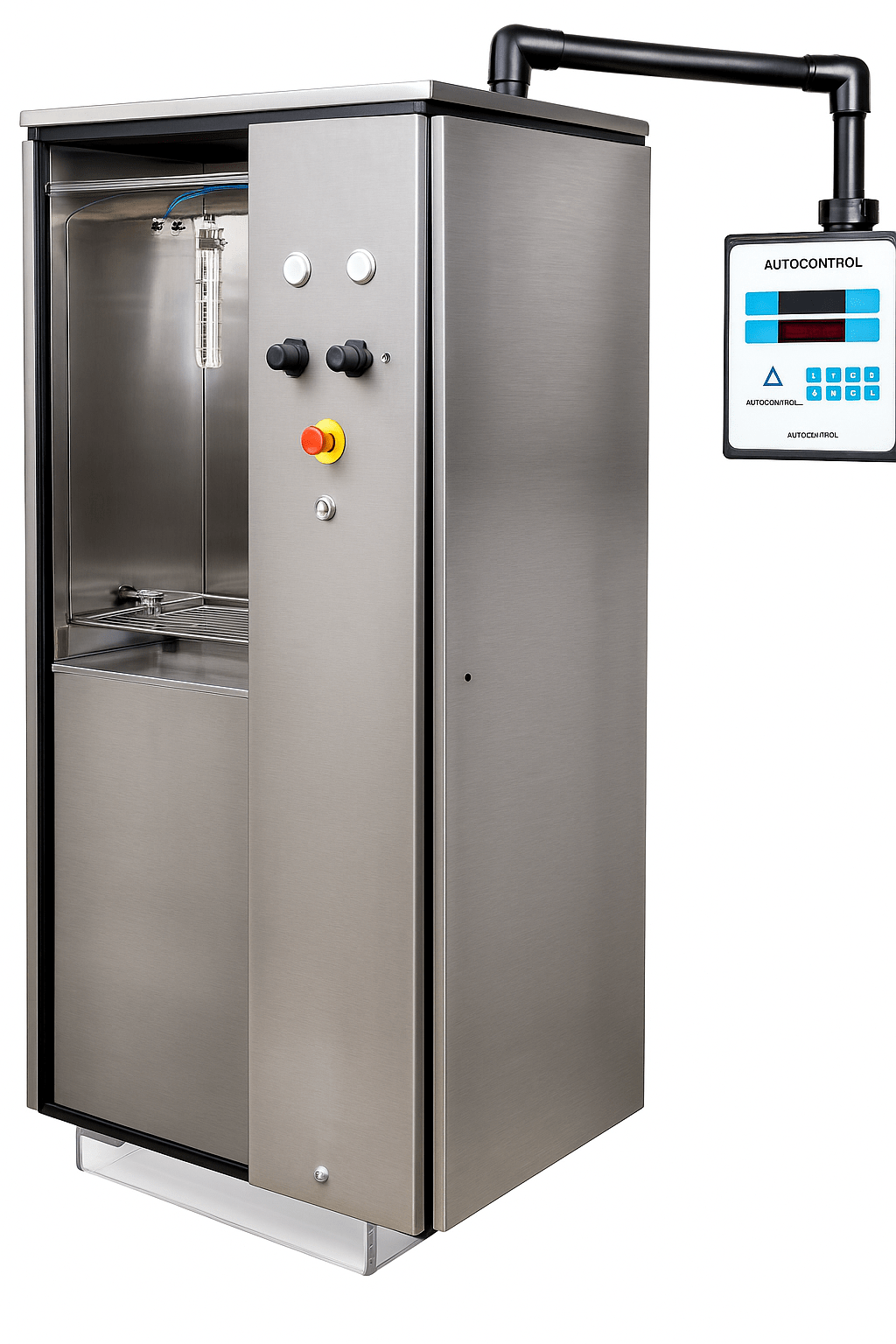

The HAL is a Hot Air Leveling machine designed for solder plating on printed circuit boards. With a fully stainless steel interior, it offers exceptional durability and resistance to molten solder.
This Machine is useful for small to medium volume industry & prototype. The system allows processing Hole Size 0.5mm Diameter.

Design Highlights

Microprocessor-controlled automation for precision results
Processes boards from 0.8 mm to 3.2 mm thickness
Fully stainless steel construction for long life
Suitable for low to medium production & prototyping
Efficient heating and solder levelling for uniform coating

Explore More About The Product

Technical Specifications

Electrical Supply
Air Requirement
Exhaust
Working Dimensions
PCB Size
Material
PCB Clamping
Solder Tank Capacity
Heating Time
Shipping Weight
PLC
Air Compressor
3 Phase 8 K.W. 440 Volts
6 to 8 Bar, 150 NL/Cycle
120 mm Duct
H- 1800 x W- 960mm x D- 800mm
300 mm x 400 mm.
Stainless Steel.
Clamps boards from 0.8 mm to 3.2 mm thick.
85 kgs
1 – 1.5 Hrs.
280 kg.
Delta Mech./ or separate Control Panel
7 HP Required (not included)
