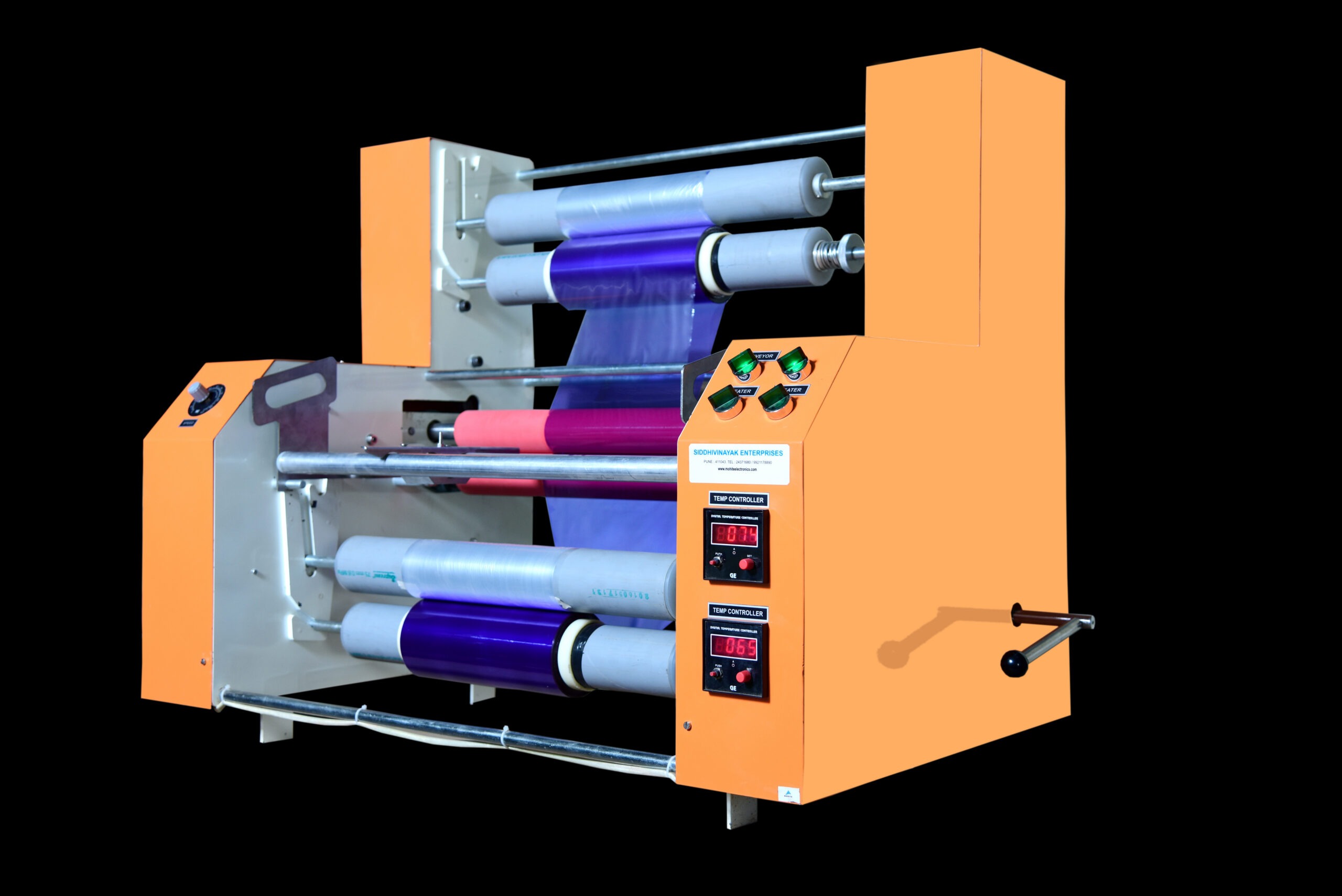

This machine is commonly used in PCB prototyping and manufacturing , where photo resist films are laminated onto copper – clad boards for photolithographic processes
Design Highlights
Silicon rubber Roller to apply heat and pressure to bond the film.
Consistent gap control between rollers for uniform lamination.
Independent temperature control for upper and lower rollers.
Variable speed motor for roller rotation
Over temperature shutdown.
All Electrical & Electronics Material used, CECT Approved.
Explore More About The Product
Technical Specifications
Over temperature shutdown.
Weight Capacity
Heater Capacity
Lamination Width
Max. Panel Thickness
Temp. Ind’. Controller
Electrical Supply
Conveyor Motor
470 x 600 x 600 mm
50 kg
1200 W
400 mm
0.2 to 5mm
Digital, 0 to 150° C
Single Phase 240 V, 15Amp.
1⁄8 HP with DC Drive.
Need pricing or more technical details of PCB Dry Film Laminator?
