Product Description

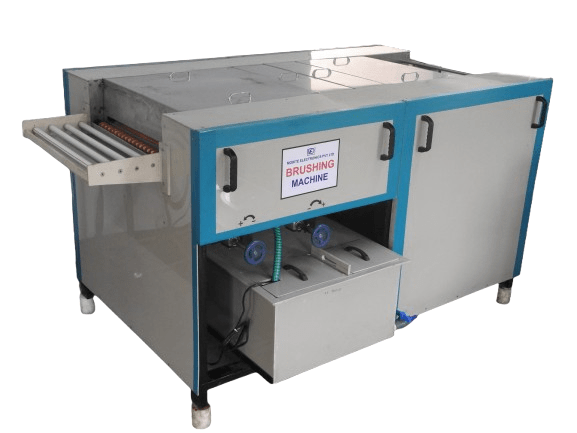

Single-sided or double-sided machine for deoxidizing, light deburring, and surface finishing of printed circuit boards. All types of brushes can be used, and brush changing is easier. Deburring or scrubbing is followed by high-pressure water rinse to remove small particles from the board. Foundation is made of stainless steel and other robust materials. Each brush has an independent drive and can be operated separately. Conveyor speed is variable from 0.25m to 1.5m/min.

Design Highlights

The machine supports both single-sided and double-sided processing, making it suitable for all PCB surface preparation needs.

It accepts all types of brushes and allows quick, easy brush changes for efficient operation.

A high-pressure rinsing system ensures complete and thorough cleaning after brushing or deburring.

The integrated water recirculation system reduces water consumption and provides an eco-friendly cleaning solution.

Its construction features a durable stainless steel (SS304) interior that enhances machine strength and longevity.

Each brush is driven independently, giving operators full control and flexibility during the brushing process.

The machine includes both cold and hot air systems to ensure effective moisture removal from the PCB.

The overall design emphasizes precision, durability, and easy maintenance for long-term reliability.

Explore More About The Product

Technical Specifications

Conveyor Width

Conveyor Speed

Board Thickness

PCB Size (Min)

PCB Size (Max)

Max Operating Temp.

Conveyor Pitch

Brush Size (mm)

Brush Type

Oscillation

Machine Cover

Foundation Plate

Main Drive

Conveyor Motor

Conveyor Rods

Conveyor Shaft

Transmission

Brushing System

Brushing Motors

Oscillation Motors

Brush Rinse Spray

Brush Rinse Tank

Rinse Pump

Brush Adjustment

Fresh Water Rinse

Rinse Nozzles

Squeezing Rollers

Cold Drying Air Knives

Cold Drying Blower

Hot Air Knives

Hot Air Boxes

Temperature Control

Hot Air Blower

Control Panel

Control Cable

450mm / 610mm

0.5 - 3 mtrs/min

0.8 - 3.2 mm

150 × 150 mm

450 × 1250 mm

80°C

80 mm

OD 125 × ID 50.8 × L 450 / 610 mm

Non-woven / Nylon Bristle

Fixed, 150 RPM

SS 304

SS 304, 3 mm Thk.

AC Drive, 1 HP

0.5 HP AC Geared, Crompton / Eqv.

SS Rods with PVC & Silicon Discs (Ø 38 mm)

SS 304 with Bearing Blocks & Bearings

Chain & Sprocket

1 Top & 1 Bottom

1 HP × 2, 1400 RPM

2 Nos.

2 Top & 2 Bottom Spray Bars

PP, 60 Litres

0.5 HP Monoblock, Crompton / Eqv.

Manual Gearbox (Up/Down)

2 Top & 2 Bottom Spray Bars

5 Flat Spray Nozzles per Bar

2 Top & 2 Bottom Spring Loaded PVA

1 Top & 1 Bottom

0.5 HP

2 Top & 2 Bottom SS

1.5 kW × 3

Digital, up to 80°C

1 HP

Separate Free-Standing (MS Body)

3 m Panel to Machine
